10x10 Metal Chassis 770S 1/14 RC Hydraulic Dump Truck Crane Full Tipper Machine 3-Speed Gearbox 9-Way Reversing Valve Light Sound System Hobby Grade Model for Ages 14+

#Specification:Condition: New, Painted and AssembledMaterial: Metal, PlasticScale: 1/14Color: BlueSize: About 830x190x290mmNet Weight: About 15KGID: TH-X-SC770S-10x10-CraneDP-UHBKT-XELite-RTR-DBU#The Package Includes: 1/14 10x10 RC Crane Dump Truck Model with U-shaped High BucketMotorServoESCHydraulic System with 9-way Reversing ValveLight SystemSound SystemRear Axle LiftingRear Axle SteeringCentral Differential Transfer CaseFrSky Tandem XE Lite Remote Controller and ReceiverBatteryCharger#The Package Does Not Include:Hydraulic Oil#Parameter:Transmission ratio: 1st gear 1/113; 2nd gear 1/86.4; 3rd gear 1/62.1Bucket dumping angle: 50°Bucket rated load: 15kgVehicle weight: 15kgVehicle dimensions: 830mm190mm290mmMaximum lifting weight with boom fully extended: 0.5kgValve: 9-channel all-steel reversing valveWorking oil pressure: 3.5MPARecommended Hydraulic oil: Hydraulic oil No. 46

• Upgraded 9-Channel Reversing Valve: Enhanced control with a versatile 9-channel reversing valve for precise maneuvering. Durable Construction: Crafted with precision using nodular cast iron for the main components, ensuring durability and longevity.
• Micro Hydraulic Pump: Utilizes a high-quality micro hydraulic pump for efficient and reliable hydraulic operations. 2mm Hydraulic Piping: Features a complete 2mm hydraulic piping system throughout the entire vehicle, greatly improving aesthetics and organization.

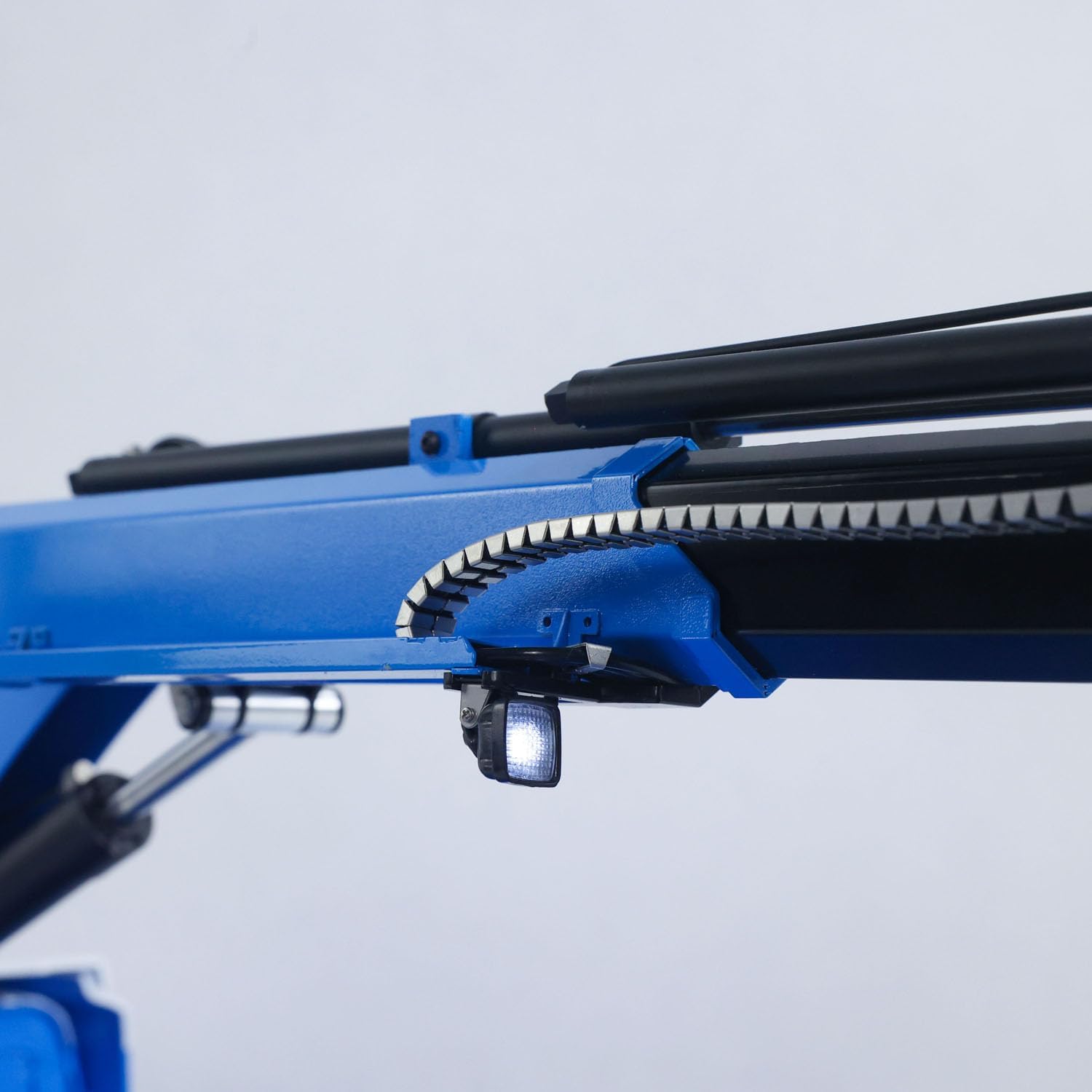

• Simulated Crane Technology: Equipped with a realistic 4-section telescopic arm with oil cylinder, providing an authentic crane experience. Reserved hydraulic oil channels: Two reserved hydraulic oil channels for upgrade parts.
• 360° Rotating Oil and Electrical Slip Rings: Enables seamless and continuous rotation for enhanced flexibility during operation. Interchangeable Bucket Types: Fully detachable and replaceable bucket, allowing users to switch between different types of buckets for various tasks.
• Simulation 3-Speed Gearbox: Mimics the functionality of a 3-speed gearbox, providing a realistic driving experience. 10x10 Wheel-Side Reduction Axle: Features a specialized wheel-side reduction axle with 10x10 configuration for improved traction and stability.
• Central Differential and Axle Locks: Equipped with a central differential and differential locks on all axles, enhancing control and stability on challenging terrains. Simulated Radiator with Fan: Realistic radiator design with an integrated fan for authentic heat dissipation effects.
• Simulated Stainless Steel Components: Includes simulated stainless steel components such as variable-section main beam, drive shaft, and wheels, enhancing both aesthetics and durability. Headlights, roof illumination lights, and side lights are controlled together with the central differential through the same channel. The rotating light illuminates when powered, and it cannot be controlled remotely.
